Supported Meters

CLOU CL710K

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
Internal GPRS modem or RS485
Phases
1
Protocol
DLMS (TCP/HDLC)
Software
Meter View
Description
STS meter, can set to postpaid and send token

Setup:
-change APN in modem (set APN to 'internet')
-change server ip
-and set port to 2227
OR use as APN modem with static IP address

Set breaker mode to 4 to enable remote switching
Wiki
CLOU CL710K
Why can't pnpscada see my CLOU meter?

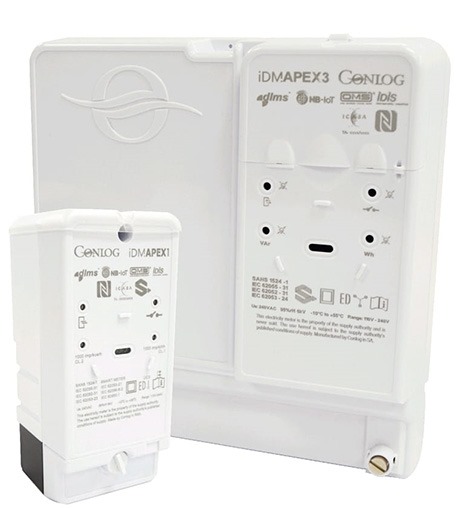

Conlog via head end

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
SOAP Client
Phases
1,3
Protocol
SOAP, STS
Software
Description
You still need the Conlog server, and PNPSCADA only pulls in the readings from the server

EDMI Mk10A

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

EDMI Mk10 Atlas

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

EDMI Mk10D

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

EDMI Mk10E

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

EDMI Mk6 Genius

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

EDMI Mk7C

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
EzeView+license file for each meter
Description
Wiki
meter reading software for the EDMI meters

Elspec

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
ftp
Software
Description
this is a cool Israeli fault recorder that has continues wave shape profile at a high sampling rate

Elster A100C Irda

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Irda
Phases
1
Protocol
Serial packets every second
Software
Description
We have also posted designs for a Burb Catcher assembly that can read up to 64 of these meters with one modem.

Elster A1140 100A

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
1
Communication
RS232 port RJ12
Phases
3
Protocol
IEC61107
Software
SMARTset
Description
Wiki
When I validate my meter, it fails to pass the Audit! It says a Check Total is wrong?

Elster A1140 5A

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
1
Communication
RS232 port: RJ12
Phases
3
Protocol
IEC61107
Software
SMARTset
Description
Wiki
When I validate my meter, it fails to pass the Audit! It says a Check Total is wrong?

Elster A1160

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS232 port: RJ12
Phases
3
Protocol
IEC61107
Software
SMARTset
Description

Elster A140

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
IEC61107
Software
Description
This meter is end-of-life

Elster A1700

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
4
Communication
Cartridge as RS232+485, Modem or Etherpad
Phases
3
Protocol
IEC61107
Software
SMARTset
Description
Wiki
Elster A1140 Meter Programming Software
Elster A1700 Multidrop Splitter
Elster Outstation number
Program A1700 with always on relay
Telnet login details for the Elster A1700 etherpad module
Using PMU over TCP
Water Meters on PNPSCADA

Elster A220

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
1
Communication
RS485
Phases
1
Protocol
IEC61107
Software
Description
end-of-life
Wiki
meters that have contactors (internal breakers)

Elster AS1440

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
RS485
Phases
3
Protocol
IEC61107
Software
alphaSET
Description
Wiki
Elster A1140 Meter Programming Software
meters that have contactors (internal breakers)
On/off status of the breakers

Elster AS220

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
1
Communication
Cartridge as RS232, Modem+RS232+RS485
Phases
1
Protocol
IEC61107
Software
alphaSET
Description
Wiki
Elster A1140 Meter Programming Software
meters that have contactors (internal breakers)

Elster AS230

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
1
Communication
Cartridge as RS232, Modem+RS232+RS485
Phases
1
Protocol
IEC61107
Software
SMARTset
Description
Wiki
cable pinouts
Elster A1140 Alternatives
Elster A1140 Meter Programming Software
Elster Outstation number
Elster software
Finding SIM Card on elster AS 230 meter
KoCoS modem built into AS230 KOCOS Lite
setting as230 multidrop address / outstation number
Using PMU over TCP

Elster AS3000

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
3
Protocol
IEC61107
Software
alphaSET
Description
Wiki
Elster A1140 Meter Programming Software
Using alphaSET to read AS3000 over the internet with TCP Bridge

Elster AS3500

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
3
Protocol
IEC61107
Software
alphaSET
Description
Wiki
Elster A1140 Meter Programming Software
Honeywell AS3500
meters that have contactors (internal breakers)
Using alphaSET to read AS3000 over the internet with TCP Bridge

Enermax

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS232 port:3 Wires with Screw
Phases
3
Protocol
IEC61107
Software
Description
end-of-life. The old ones support CSD, but the modem must be physically built in.

Enermax+

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
IEC61107
Software
EmanPlus
Description

Flecto Sense

Utility
Water
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
Description
FlectoSense has a locally built Sensus Concentrator that reads to their system. They can then push that data to PNPSCADA using API calls. https://www.flecto.co.za/product-pages/flecto-sense-concentrator
Wiki
Sensus Concentrator setup
Sensus FTP file system on PnPScada
Server
Why is my sensus water meter not calling in?

Friendcom WMB

Utility
Water Pulses
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
WMbus
Phases
1
Protocol
WMbus
Software
FC-701PU-180105-2.5
Description
Setup Video

Hexing HXE110 / HXF110 / HXE130 Single phase DLMS STS meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
RS485 or PLC to Concentrator
Phases
1
Protocol
DLMS
Software
HexView+meter specific db file
Description
Wiki
Hexing HXE130 support ins and outs

Hexing HXE12 Single phase DLT645 (FSK PLC) STS meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
PLC to Concentrator or IDIS Concentrator
Phases
1
Protocol
DLT645 via concentrator
Software
HexView+meter specific db file
Description

Hexing HXE310 / HXE330 Three phase DLMS STS meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
Cartridge Modem or PLC to Concentrator
Phases
3
Protocol
DLMS
Software
HexView+meter specific db file
Description
Wiki
I added a Hexing HXF300 three phase meter on pnpscada, and the power factor is always 1. What is wrong?

Hexing HXF300 Three phase DLMS meter

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Cartridge Modem or PLC to Concentrator
Phases
3
Protocol
DLMS
Software
HexView+meter specific db file
Description

Holley DTSD545

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
DLMS
Software
Description

Holley MTR3000

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
Description

Honeywell HS100

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
RS485 / Cartridge Modem
Phases
1
Protocol
DLMS (TCP)
Software
MeterSoft
Description
Wiki
Honeywell HS100 multidrop
HS100 modem setup

Inhemeter DLMS STS meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
G3 PLC to Concentrator / GPRS Modem / 485
Phases
1,3
Protocol
DLMS
Software
SMARTtools
Description
We also support these through the 3G gateway of theirs.

Inhemeter DL/T645 STS meter via PLC

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
PLC to Concentrator
Phases
1
Protocol
DL/T645
Software
Description
These are the old small meters that only work with PLC

Inhemeter G3-PLC Concentrator

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Built in modem
Phases
3
Protocol
Software
Description
Model: IHM-4000

Inhemeter Single phase DL/T645 STS meter via RS-485

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
RS485
Phases
1
Protocol
DL/T645
Software
SMARTtools
Description
The problem with these meters were that after switching on remotely, the user still had to press a button on the meter before they would switch on, and there was no way around that.

Iskra MT174

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
SEP2 MeterView
Description
Wiki
Iskra MT174 Setup

Iskra MT831 and 830

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
SEP2 MeterView
Description

Itron ACE6000

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
DLMS, IP-Telemetry
Software
ACE Pilot
Description

Itron ACE9000

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
STS (IEC61107)
Software
Description
Also support multi-drop with special firmware and clip on optical units

Itron SL7000

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
DLMS
Software
AIMS or ACE Pilot
Description

Janitza 604

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
Description

Kamstrup Meter

Utility
Water/Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
Phases
1,3
Protocol
Software
Description

Kamstrup SigFox Water Meter

Utility
Water
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
Description
Wiki
Kamstrup SigFox DEK

Kamstrup KMP Stand Alone

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
KMP
Software
MeterTool
Description
Wiki
Elster A1140 Alternatives
How can I delete kamstrup totals
Kamstrup Omnicon concentrator tips
Kamstrup Server Hosting
Kamstrup server ports and firewall requirements
Kamstrup setup
Kamstrup SigFox DEK
meters that have contactors (internal breakers)
Spike on Kamstrup meters
Water Meters on PNPSCADA
What is the: Server Host name (URL to Kamstrup utilidriver server)
Wireless M-Bus Concentrator (PNPC01)

KoCoS IrDA

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
Software
Description

KoCoS Limo

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
web push
Phases
1,3
Protocol
Software
Description
This can read multiple types of meters including Echelon Meters with WEP port
Smappee (Home Automation)
Elster Meters

Setup example:
http://196.22.139.148/kocosMeter.jsp?LOGIN=subdomain.login&PWD=password&MTYPE=ECHELON&RECTYPE=LP where
196.22.139.148 is your server's IP
subdomain.login is your login
and password is the password
and MTYPE is type for that meter


the Limo will then push data that looks like this
[{'meter':'ELON1234567','records':[{'flags':'0000','from':1576099800,'to':1576101600,'values':{'Import_kWh':5149.777,'Q1_kvarh':1030.183}}]}]

Laison STS GPRS

Utility
Water
Breaker Size (A)
15
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
daily TCP push
Phases
1
Protocol
DLT645 derivative
Software
SetNBGPRSTool.exe, CustomizationTool.exe
Description
Wakes up once a day, to send yesterdays one hour profiles. Can get earlier profiles by setting MAXDATE back. Needs STS encryption for clearing event mask, opening and closing valve remotely and sending STS token remotely. Meters added automatically. Add Servers->Laison Listener, in order to get the meters auto created on push. Configure meter to push to your server on the port reported when adding the Listener. Get a specific meter to send through its readings immediately by holding Report button on meter.

Landis & Gyr DCv3 G3-PLC Concentrator

Utility
Electricity
Breaker Size (A)
0
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
0
Protocol
Software
Description
Wiki
Landis & Gyr G3-PLC DCv3 and E460 meter problems

Landis & Gyr E460

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
RS485 / G3-PLC / GPRS Modem
Phases
1,3
Protocol
DLMS (HDLC, SN)
Software
.MAP110, .MAP120
Description
STS Smart Meter, or not. This same driver for all DLMS Landis & Gyr meters. Not all meters support all 3 communication types, and not all are STS capable.
Wiki
Can I set up the Landis and Gyr internal TCP/IP module as an Active Etherpad?
Can I use the Landis and Gyr internal GPRS modem communication module with pnpscada?
Elster A1140 Alternatives
How should I set up my SyM2 meter to do push?
Landis & Gyr IEC Readout
Landis & Gyr Totals not reading
Landis and Gyr RAT
landis and gyr zmd to riecktron modem pinout and setup
Landis and Gyr ZMG IEC Comms Troubles
Landis & Gyr E460 three phase meter support
Output Error on Landis and Gyr
Output problem on Landis and Gyr ZMD
Prepaid functionality
System Integration formats of meters
TCP Bridge with Landis and Gyr
tou billing register values - meter - pnpscada
What Protocols do PNPSCADA support?

Landis & Gyr RAT

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
http
Phases
1
Protocol
Software
Suprima
Description
In PNPSCADA the Concentrator is the RAT, and PNPSCADA becomes the SupTalk Server that the Concentrator connects to. End-of-life

Landis & Gyr ZMD

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Cartridge for RS232 or Modem
Phases
3
Protocol
IEC61107 / DLMS (HDLC, SN)
Software
MAP110 (read) MAP120 (program)
Description
Wiki
Can I set up the Landis and Gyr internal TCP/IP module as an Active Etherpad?
Can I use the Landis and Gyr internal GPRS modem communication module with pnpscada?
Elster A1140 Alternatives
How should I set up my SyM2 meter to do push?
Landis & Gyr IEC Readout
Landis & Gyr Totals not reading
Landis and Gyr RAT
landis and gyr zmd to riecktron modem pinout and setup
Landis and Gyr ZMG IEC Comms Troubles
Landis & Gyr E460 three phase meter support
Output Error on Landis and Gyr
Output problem on Landis and Gyr ZMD
Prepaid functionality
Reverse CT
System Integration formats of meters
TCP Bridge with Landis and Gyr
tou billing register values - meter - pnpscada
What Protocols do PNPSCADA support?

Landis & Gyr ZMG

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS232 port: RJ12
Phases
1
Protocol
IEC61107
Software
MAP110 (read) MAP120 (program)
Description
Wiki
Can I set up the Landis and Gyr internal TCP/IP module as an Active Etherpad?
Can I use the Landis and Gyr internal GPRS modem communication module with pnpscada?
Elster A1140 Alternatives
How should I set up my SyM2 meter to do push?
Landis & Gyr IEC Readout
Landis & Gyr Totals not reading
Landis and Gyr RAT
landis and gyr zmd to riecktron modem pinout and setup
Landis and Gyr ZMG IEC Comms Troubles
Landis & Gyr E460 three phase meter support
Output Error on Landis and Gyr
Output problem on Landis and Gyr ZMD
Prepaid functionality
System Integration formats of meters
TCP Bridge with Landis and Gyr
tou billing register values - meter - pnpscada
What Protocols do PNPSCADA support?

Linyang STS meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
PLC to Concentrator / GPRS Modem / RS485
Phases
1
Protocol
DLMS
Software
LY-SWPC*
Description
setup: browse 172.168.100.100:8080 username:admin

MetCom MCS301

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
Blue2Link
Description

Micro Star A2000 (RS485)

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
3
Protocol
DLMS
Software
Description
Wiki
MicroStar M590 modem

Micro Star B2000 (RS485)

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
3
Protocol
DLMS
Software
Description
Wiki
MicroStar M590 modem

Orbis Contax DBus

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
MODBus
Software
Description

PNPSCADA Demo Data Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
none
Description
Generates random data for training purposes.

PNPSCADA Generic Modbus Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
Software
Description
Generic implementation for any meter that supports the Modbus protocol and has a Total register
Wiki
Honeywell AD120
Schneider PM3255 support

PNPSCADA Generic STS Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
Software
Description
Meters that are not read by PNPSCADA, but PNPSCADA can generate Tokens for them, and inserts profile estimated on the premise that all previous day's tokens' energy has been used when a new token is bought.

PNPSCADA M-Bus meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1,3
Protocol
Software
Description
Generic implementation for any meter that supports M-Bus protocol

PNPSCADA MOL Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
web services
Phases
1,3
Protocol
Software
none
Description
Draws meter data from the MOL website

PNPSCADA Pulse Meter

Utility
Electricity or Water or Gas
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Pulses
Phases
1
Protocol
Software
none
Description
Used as an end point meter for devices that counts 1 or more pulses.

PNPSCADA Virtual BTU Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
none
Phases
1
Protocol
Software
none
Description
Combines Water Usage, In Temperature and Out Temperature to create a virtual power meter.

PNPSCADA Virtual Meter

Utility
Electricity or Water or Gas
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
none
Description
Data is captured manually under Edit->Meter Totals, Tools->Import Meter Readings. There are two overatching modes of operation: with profile or from totals. Switch via 'read' sets on Advanced Meter Settings. A virtual meter can also be just profile from a source meter, and this can also be dependent on a time span event, e.g. when the generator kicks in.

PRI Premier

Utility
Electricity
Breaker Size (A)
5/100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
Pacs2
Description

Sanxing meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
Only RS485, GPRS and PLC
Phases
1,3
Protocol
DLMS, some supports STS
Software
Sanxing Meter Reading (sts) or SANPLAT-PCS (ct meter)
Description
The PLC is not G3-PLC, so only reliable up to about 30 meters. Sometimes have AMS or African Metering Solutions written on it.
Wiki
How do I set up a Sanxing internal GPRS modem to connect to pnpscada?
meters that have contactors (internal breakers)
Sanxing Meter

Schneider PM3255

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
1,3
Protocol
Modbus
Software
Can be setup through screen
Description
Wiki
Schneider PM3255 support

Secure Apex 200 DLMS Meter

Utility
Electricity
Breaker Size (A)
5
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
RS485 or Ethernet
Phases
3
Protocol
DLMS (TCP/HDLC)
Software
M-Cubed 100
Description
class 0.2 meter from Dubai

SEL 734/5

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
Description

SEL 751

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
Software
Description

Sensus / Telbit / Elster / Honeywell STS Water meter Used in Sensus and Elster water STS meters

Utility
Water
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
SigFox
Software
Field Maintenance Terminal
Description
Wiki
Sensus Concentrator setup
Sensus FTP file system on PnPScada
Server
Why is my sensus water meter not calling in?

Siemens/Wasion IM100

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
1
Number Of Relays
0
Communication
Phases
1
Protocol
DLMS
Software
Description

Siemens/Wasion IM300

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
3
Protocol
DLMS
Software
Description
Wiki
SIEMENS IM300 Login failed. Reason code: 13
Siemens meter internal modem not reading

SyM2 Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
0
Number Of Relays
0
Communication
IP-Telemetry
Phases
3
Protocol
SyM2, SML
Software
Description
Wiki
Can I use the Landis and Gyr internal GPRS modem communication module with pnpscada?
How should I set up my SyM2 meter to do push?
Request for multiple upload function
SyM2 back plane meters, how to publish
SYM2 Gateway Modem
SYM2 Gateway Modem Complete Setup
System Integration formats of meters
What Protocols do PNPSCADA support?

Telbit PWC200/300 Water Meter Used in Sensus and Elster water STS meters

Utility
Water
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
868
Phases
1
Protocol
Software
Field Maintenance Terminal
Description
You can buy a Telbit USB dongle to talk to the meter from your laptop. This comes with software to run on your computer. You can then get an orange pi lite with software loaded from us, and you can plug the USB dongle into it and install it on site with a USB modem. This will allow you to read Telbit remotely.

Utility Systems WMD via UtiliHub

Utility
Water
Breaker Size (A)
100
Has Profile
No
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
Phases
1
Protocol
Software
Description
end-of-life. Was developed with the first version of UtiliHub which was experimental

Veryco

Utility
Electricity
Breaker Size (A)
100
Has Profile
No
Has Totals
No
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
RS485
Phases
1
Protocol
Software
Description
Wiki
What is the RS485 settings for the Veryco meter?

VisioSoft VisioUtil

Utility
Water/Electricity
Breaker Size (A)
n.a.
Has Profile
Yes
Has Totals
Yes
Has Events
No
Has Phasor
No
Number Of Breakers
0
Number Of Relays
0
Communication
SigFox
Phases
1
Protocol
Software
Description
web site

Wasion/Netvendor STS Meter

Utility
Electricity
Breaker Size (A)
100
Has Profile
Yes
Has Totals
Yes
Has Events
Yes
Has Phasor
Yes
Number Of Breakers
1
Number Of Relays
0
Communication
Phases
1
Protocol
DLMS, STS
Software
unofficial:Wasion Software
Description
Can only read profile if not on manufacturer SGC
Wiki
Cannot connect to Wasion Concentrator?
Elster A1140 Alternatives
meters that have contactors (internal breakers)
PLC meter range
Possible Wasion Solutions
Prepaid functionality
sts vending system - generate tokens - pnpscada
Temporary Fix - Wasion Meter firmware issue
Wasion
wasion error codes
Wasion G3-PLC
Wasion GPRS modem setup
Wasion Netvendor DDSD 101 Prepaid electricity meter replacement modem.
Wasion Postpaid Mode
Wasion Test and Technical Documentation
